Monitoring and Alerting - Data Pipeline

Context

We have designed multiple monitoring and alerting systems so that the customer and support team is aware of any issues that arise in the pipeline. Below is a list of monitoring/alerting activities performed.

1. The monitoring screen in the UI

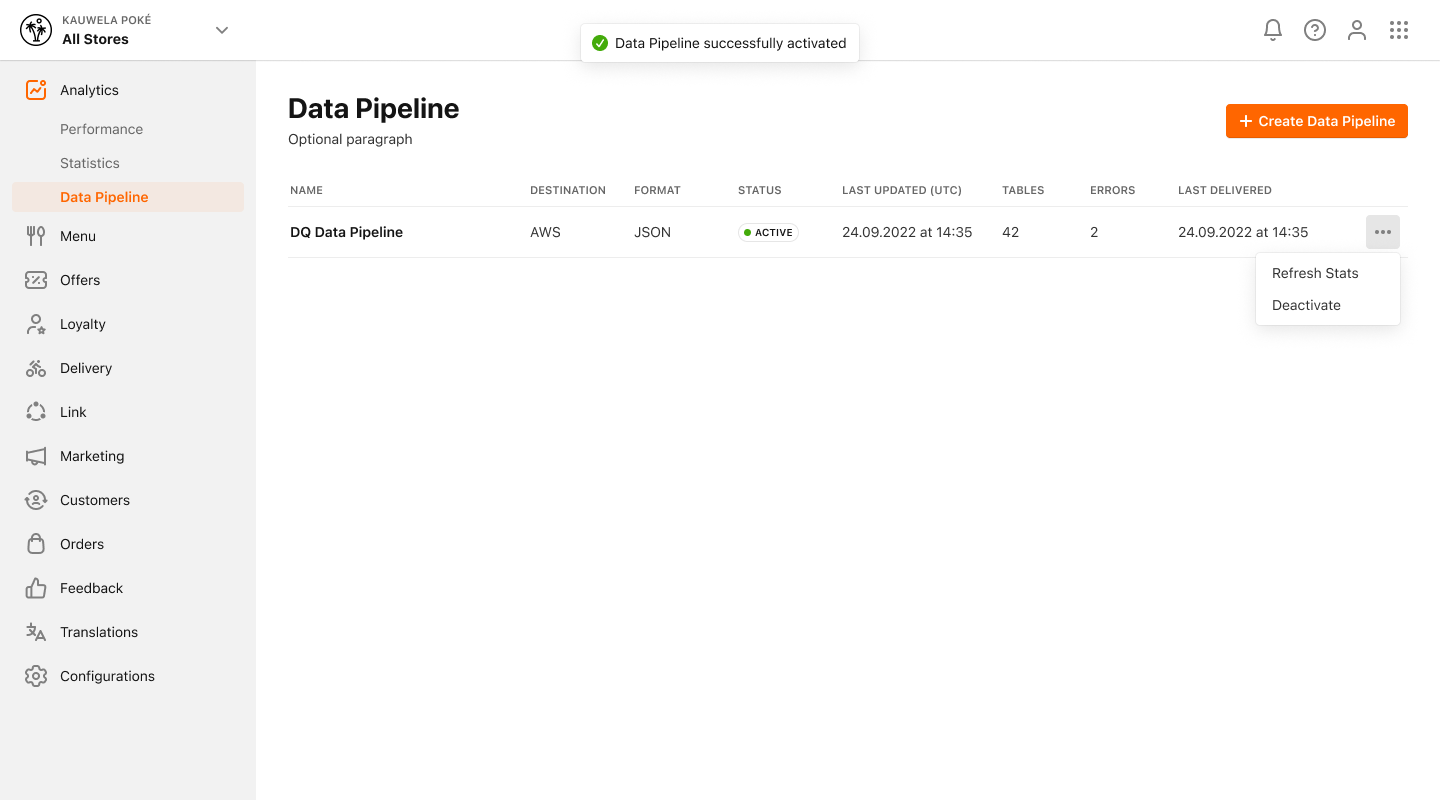

   1. This provides high level statistics



      1. number of tables with errors

      2. last delivered date time

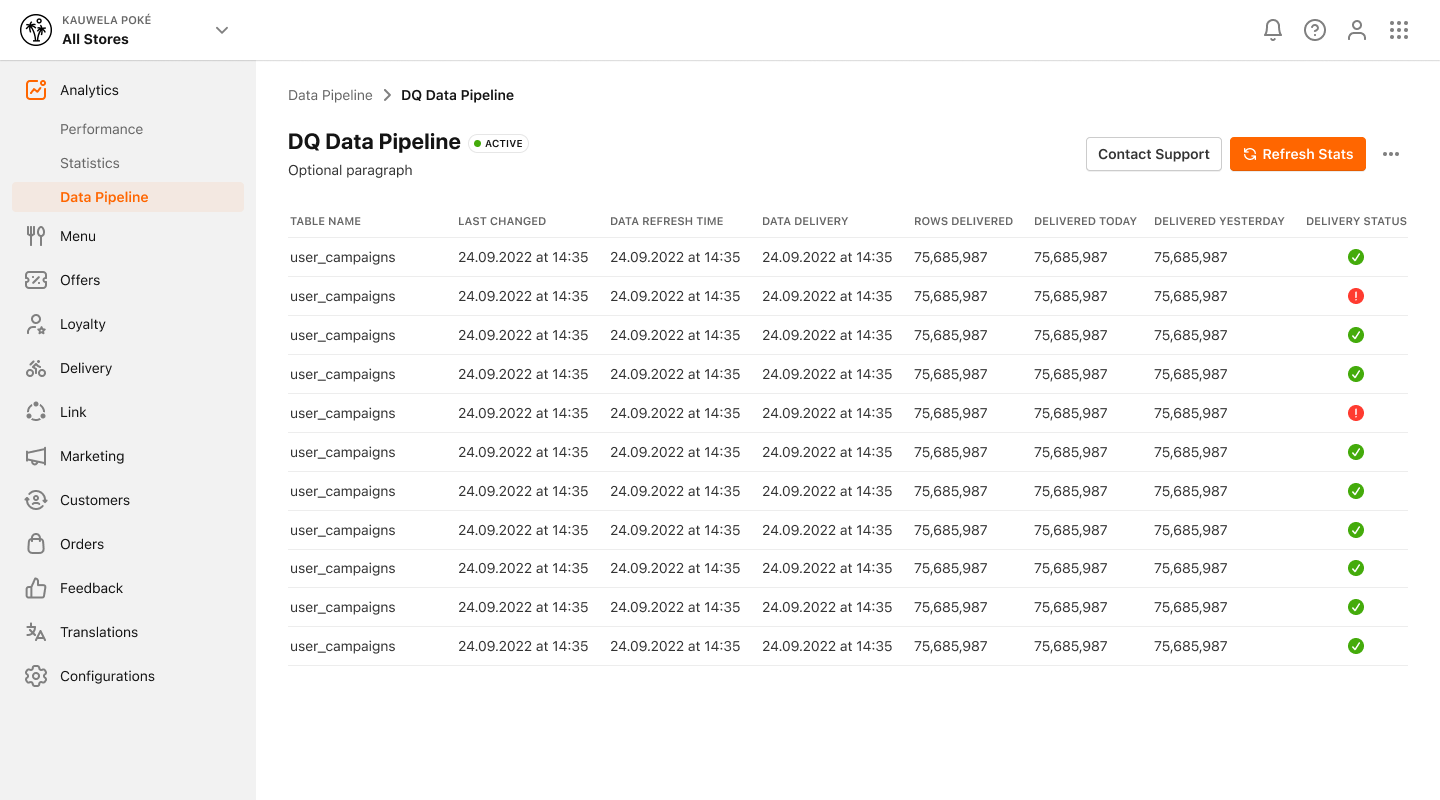

   2. Detailed statistics


      1. Table last changed date (Column name - TABLE MODIFIED; Display date only. Hover text - Table definition was last changed on this date)

      2. Latest data refresh timestamp from production to replica (Column name - SOURCE DATA CAPTURED ; Display datetimestamp. Hover text - Data was captured/created on MENU server (source for data pipeline) at this date-time)

      3. Latest timestamp at which data was delivered to the customer from replica (Column name - LAST DELIVERY; Display datetimestamp. Hover text - Data was last delivered to the destination at this date-time)

      4. Number of rows delivered to the target destination as of the latest delivery (Column name - ROW - LAST DELIVERY; Display int. Hover text - Number of rows of data delivered to the destination as of last delivery)

      5. Total number of rows delivered today / Current day count (Column name - ROWS - TODAY; Display int. Hover text - Number of rows of data delivered to the destination today)

      6. Total number of rows delivered yesterday (Column name - ROWS - YESTERDAY; Display int. Hover text - Number of rows of data delivered to the destination as of the previous day)

      7. Delivery status of each attempt along with errors (Column name - STATUS ; Display image - green check for success; red exclamation for errors with error description in the hover text. Hover text for column - Status of delivery based on the most recent delivery attempt. Hover text at row level for errors - Display short error description)
