In order to guarantee reliability, smooth operations in the store and the best support, PAR Ordering certifies Kiosk hardware peripherals that can be used in production to run the PAR Ordering Kiosk app. When choosing a Kiosk, you can choose from existing certified Kiosk hardware peripherals or request a different hardware peripheral model to be certified by PAR Ordering.
With our certification process, we still offer our customers a solution to choose their own preferred Kiosk system by extending our list of certified Kiosk systems.
Certified Devices
Kiosk Models
Company |
Product Model |
Screen Size Resolution |
Printer |
Barcode Scanner |
Puck Dispenser | Kiosk Configuration Specs | ADA Module Option |
SAMSUNG | KM24A |
24″ 1080x1920 |
BIXOLON BK3-3 | Samsung built-in camera | N/A |
CPU: Cortex A72 1.7GHz Quad-Core RAM: LPDDR4 1.5GHz 64bit 3GB Storage: 8GB (3.88GB Occupied by O/S, 4.12GB available) |
Yes |
BigPos PosSystem | BigPos 2700 | 27″ 1080x1920 | A8 MiniPrinter | Newland NLS-EM20-80 COM Scanner | N/A | Intel Core i5 @ 2.40GHz, 8,00GB, 128GB | Yes |
Elo | ESY22i5 |
22” Pivot (Portrait) Full HD (1080x1920) |
EPSON TM-T88VI | Honeywell 3320G | N/A | Processor Intel i5, 8GB, Win 10 x64 | Yes, but only on Wallaby Pro Stand |
Elo | ESY22i3 |
22” Pivot (Portrait) Full HD (1080x1920) |
EPSON TM-T88VI | Honeywell 3320G | N/A | Processor Intel i3, 8GB, Win 10 x64 | Yes, but only on Wallaby Pro Stand |
Evoke | EV Serve 27 | 27” (Portrait) Full HD (1080x1920) |
Star MC-Print3
or
EPSON TM-m30
|
Zebra MS 4717 | N/A | Processor Intel i3 or i5 | Yes |
Pyramid | polytouch® 32 passport |
32" (82cm) Pivot (Portrait) Full HD (1080x1920) |
Nippon NII ExD NP-3511 CUSTOM VKP80III |
Honeywell N5600 | Quuppa LD-6L | Processor Intel i5, 8GB, Win 10 x64 | Yes |
Pyramid | Polytouch® 27 Passport |
27.0" (685.65 mm) Full HD (1920 x 1080) |
Epson TM-T88V | Honeywell CM5680 OEM 2D USB | N/A |
INTEL i5-6500TE Skylake 4C/4T 2,3Ghz 6MB 128GB SSD / 8GB RAM |
Yes |
Acrelec | K27 |
27” Pivot (Portrait) Full HD (1080x1920) |
SNBC BTP R180 | Zebra SE 3317WA | N/A | Processor Intel i5-6500, 8GB RAM, 128GB SSD, Win 10 x64 | Yes |
Verifone | K450 |
27” Pivot (Portrait) Full HD (1080x1920) |
EPSON TM-m30 |
Honeywell 3320G | N/A | Processor Intel i5, 4GB, Win 10 x64 | Yes |
Sunmi | K2 | 24” (1080x1920) |
Icod PT80KM | Sunmi SM-100W | N/A |
Intel Core i5 1135G7, 4C/8T, 2.4GHz Max Turbo 4.20GHz, 8 MB Smart Cache DDR4 8G/2666/SO-DIMM (16GB MAX) |
Yes |
Please note: ADA (Americans with Disabilities Act) is a legislation that ensures access to services for people that have any sensory (in this case, sight and hearing) issues. The ADA Module is a must-have for Kiosks throughout the United States.
Payment Terminals
Manufacturer | Model | Connection | Gateway |
Verifone |
P400 |
USB |
PAR Pay |
Lane |
3000 |
Ethernet / LAN |
PAR Pay |
Printers
Manufacturer | Model | Connection |
CUSTOM |
VKP80III |
USB |
EPSON |
TM-T88VI |
USB |
EPSON |
TM-m30 |
USB |
NIPPON |
NP-3511 |
USB |
SNBC |
BTP-R180 |
USB |
SNBC |
BTP-S80 |
USB |
STAR |
mC-Print3 |
USB |
STAR |
TSP743IIU |
USB |
ICOD |
PT80KM |
USB |
EPSON |
FMC-TM810 |
Ethernet |
A8 Mini |
A8 MiniPrinter |
USB |
SAMSUNG |
BIXOLON BK3-3 |
USB |
Barcode Scanners
Manufacturer | Model | Connection | Device Type |
Honeywell |
N5600 |
USB |
HID |
Honeywell |
3320G |
USB |
HID |
Zebra |
SE3317-WA |
USB |
HID |
Zebra |
MS4717 |
USB |
HID |
Datalogic |
GFS4400 [GFS4470] |
USB |
COM |
SUNMI |
SM-100W |
USB |
COM |
Newland |
NLS-EM20-80 COM |
USB |
COM |
Payment Processors (Gateway)
Payment Processor | Terminal |
PAR Pay |
US: Lane/3000 Canada: Verifone P400 |
Certification Process
At this time, our development team is not accepting new KIOSK hardware certifications due to resources and certification process constraints.
If you already have a hardware that is not on our list but it was manufactured by one of the brands that we certified before please reach out to your Account Manager with the manufacturer & model information for your Kiosk hardware and we assess if it's going to be possible to certify it online by remotely accessing the KIOSK.
If the certification is successful, the kiosk and the hardware peripheral is added to the certified hardware list and you can proceed with deploying the Kiosk hardware in production. If the certification is not successful, we will provide an explanation and possible alternatives.
Kiosk notification types
In order for Kiosk notifications to work, the correct notification type in the Kiosk Windows Manager has to be selected.
Kiosk printer will print different template depending on the selected notification type, and order placing is slightly different:
-

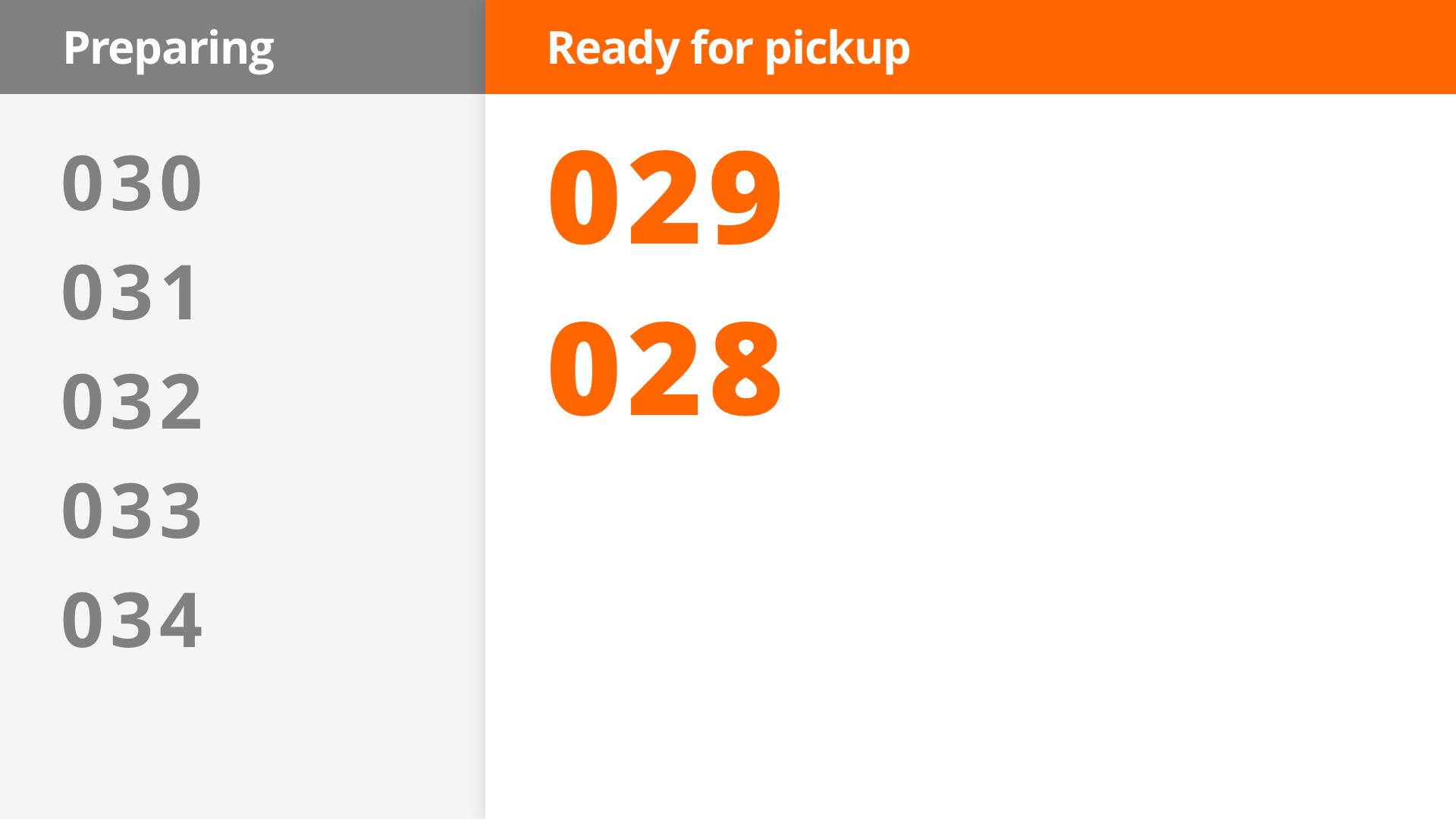

OND: Customer will see order number when placing the order. Print will have order number printed. In order to make order ready for pickup, simply click the corresponding button on your Tablet
-

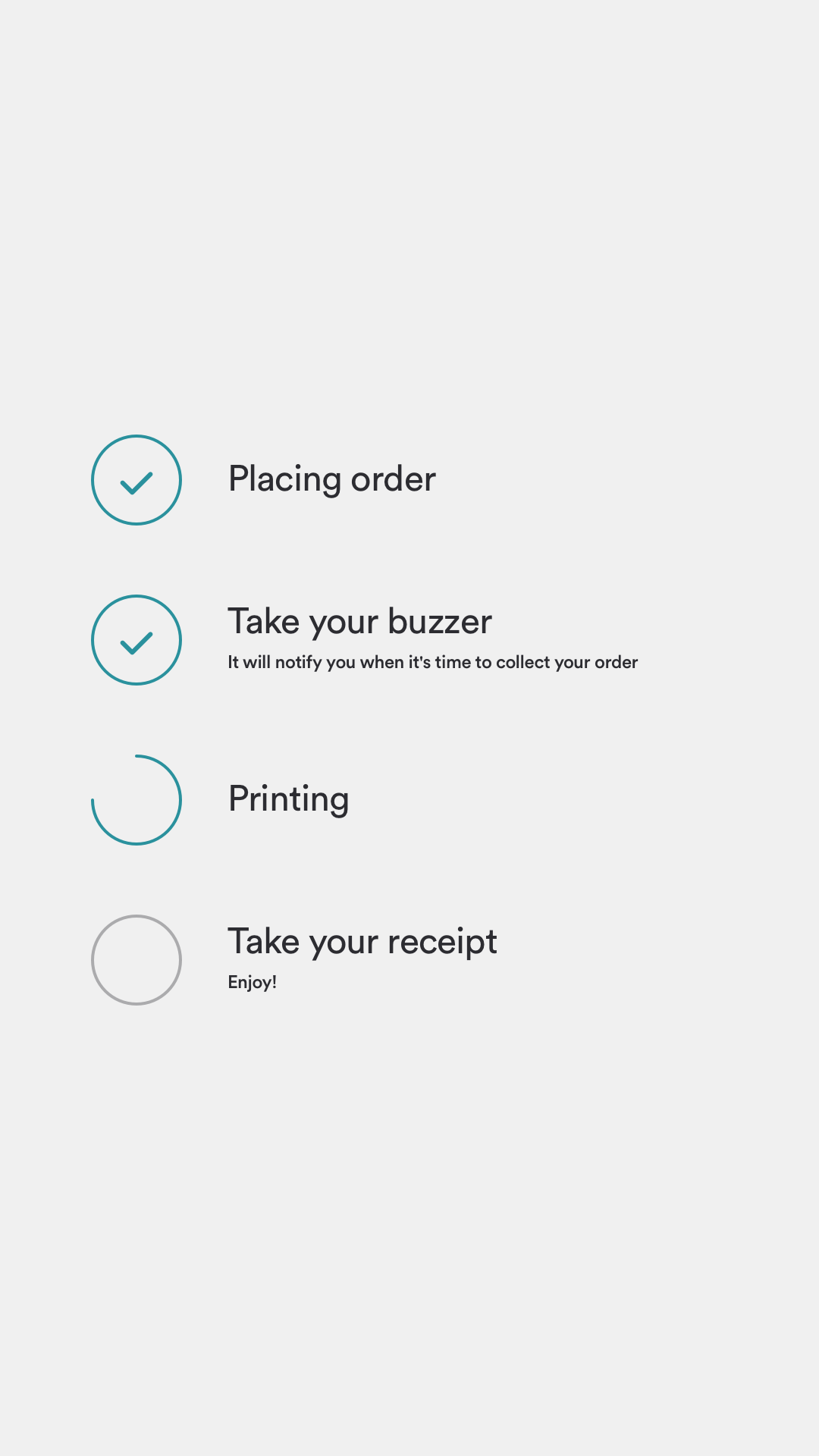

Buzzer & Locator: Customer will see a stepper informing them what's happening while they are waiting for order to be placed and while they wait for the puck. Puck will be served by the Kiosk when order is placed. Print will not have any additional information
BUZZER - to call the buzzer, click the corresponding button on your Tablet:

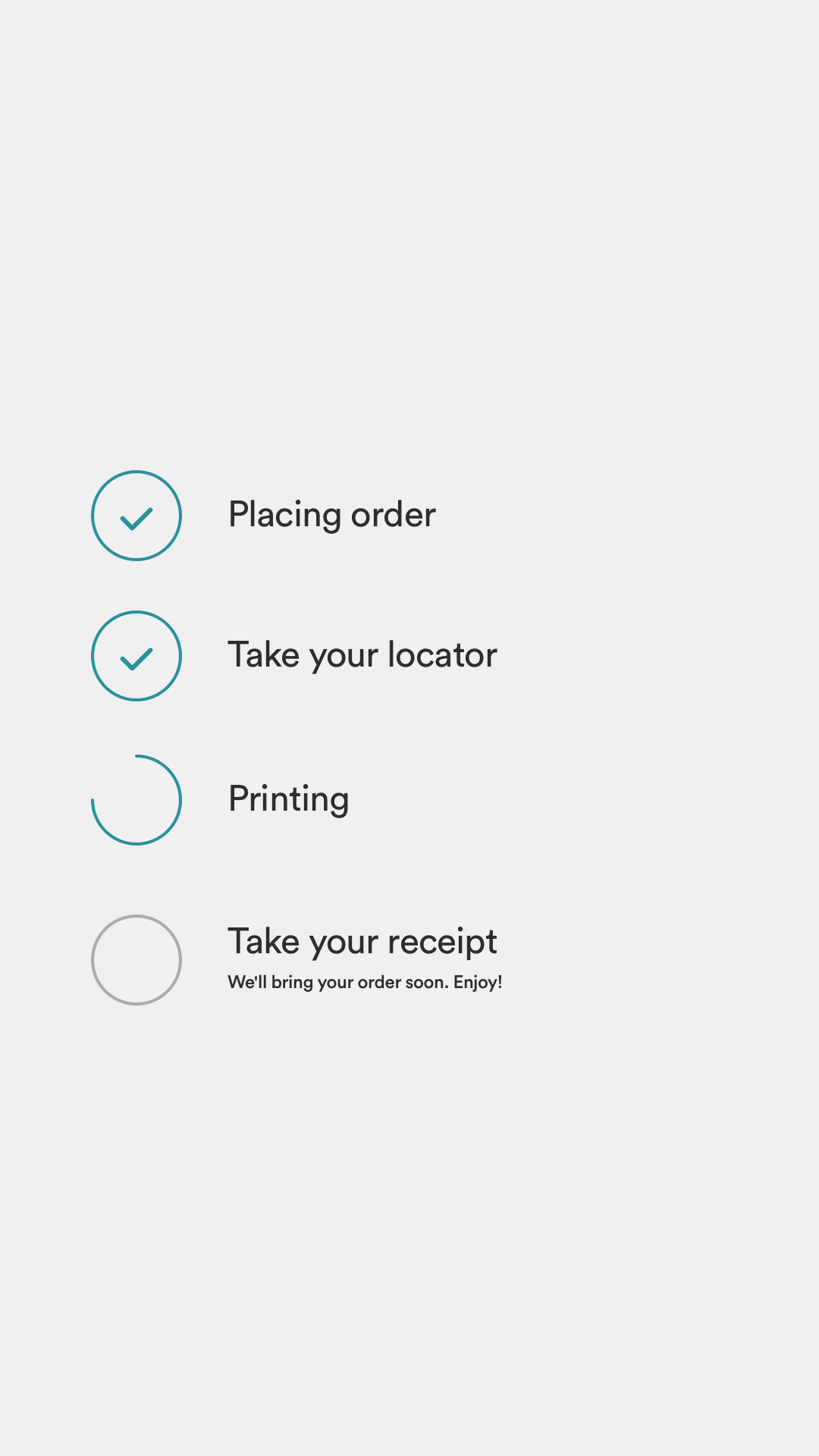

PUCK LOCATOR:
-
Table Number: Customer needs to type in table number to place the order. Print will have the table number printed
