Printer Setup Epson TM-T88VI

Info

The Printer is using Epson's Server Direct Print-feature. SDP allows the Printer to directly connect to a specific API URL to receive print jobs.
For more Information you can see the SDP User Manual.

Login to the WEB-Interface:

1. Connect the printer to your network
   Note: The printer is set to DHCP (default) and will automatically print its IP address

2. Open this URL in your WEB-browser: http://{IP-ADDRESS}/webconfig/
3. Login: (default)

   • Username: epson

   • Password: <PRINTER SERIALNUMBER> (for older printers the PW is: epson )

Configure Server Direct Print

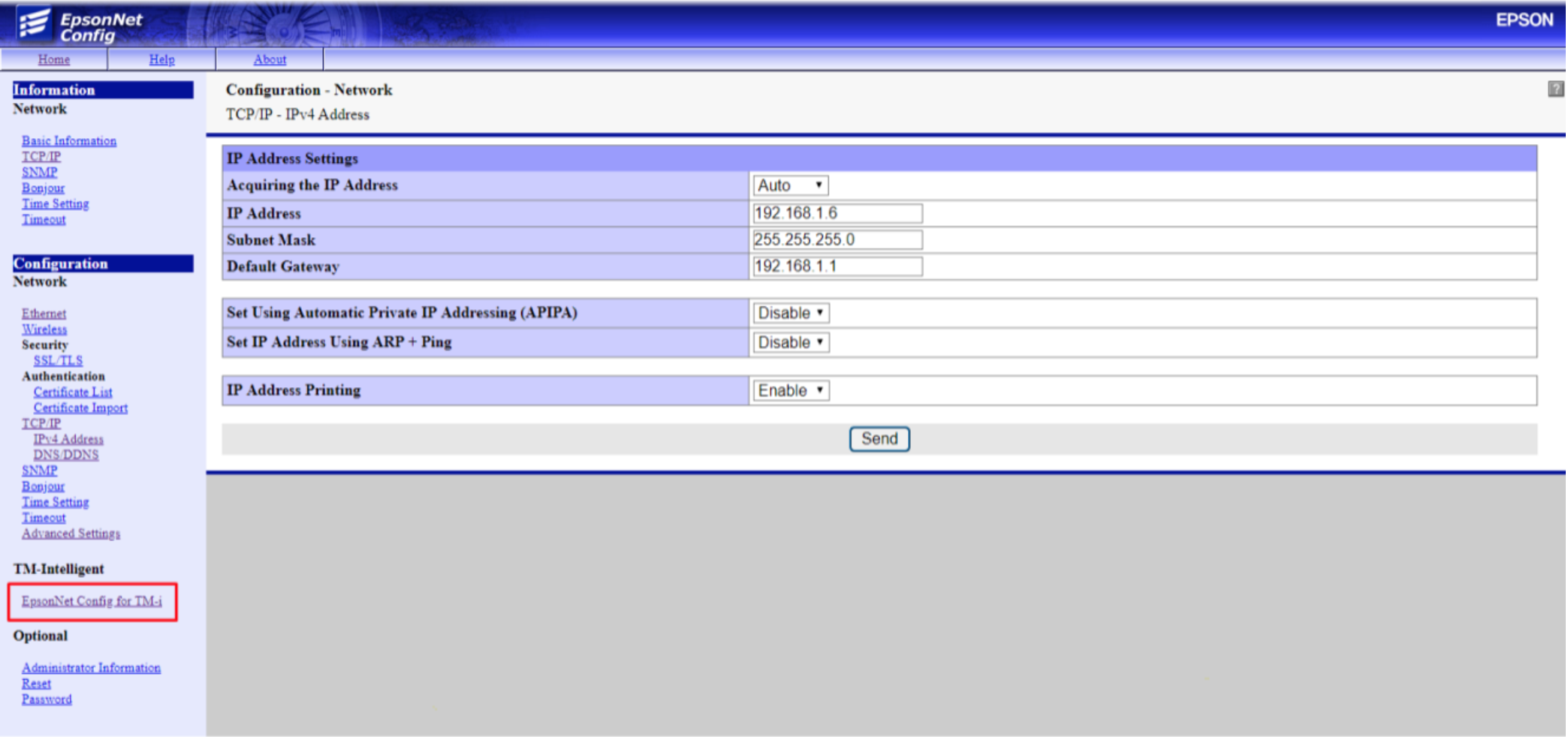

1. Navigate to TM-Intelligent / EpsonNet Config for TM-i

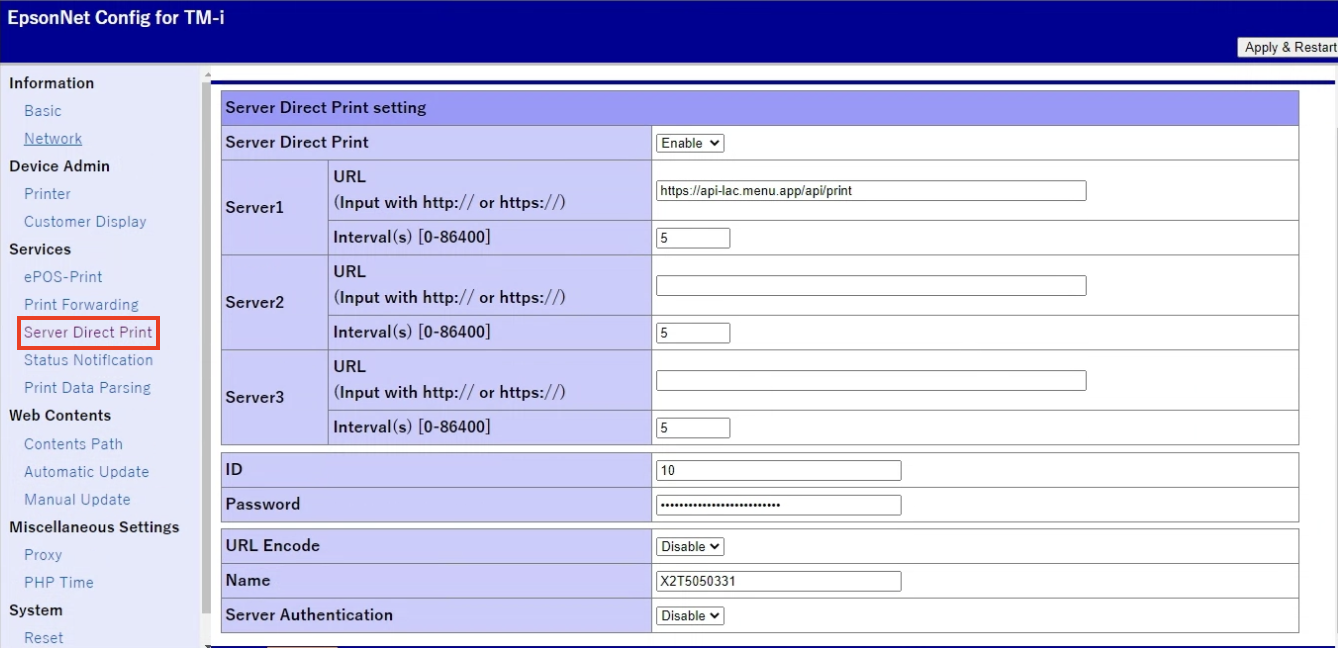

2. Navigate to Services / Server Direct Print


3. Enter the following informations
   1. 1. Server Direct Print: Enable
      2. URL: Provided by PAR Ordering
      3. Interval(s): 5
      4. ID: Provided by PAR Ordering
      5. Password: Provided by PAR Ordering
      6. URL Encode: Disable
      7. Name: (leave as is)
      8. ServerAuthentication: Disable
4. Click on 'Apply & Restart'

Setup Complete!
