How to Use the Orders Section in the Ordering Pilot App

Understanding the Orders Interface

The Orders section is the core of the app, displaying all incoming, in-progress, and completed orders.

Top Navigation

• Allows users to switch between order statuses.

• Shows a counter for the number of orders in each status.

• The active section is clearly highlighted.

Empty Orders View

If there are no orders in a selected status:

• The app displays a dedicated empty state screen.

• This helps users quickly identify that no orders are currently available in that category.

Filled Orders View

When orders are present, the screen is split into two segments:

Left Segment: Order List

• Displays all orders for the selected status.

• Orders are sorted by pickup time:

  • Sooner pickups appear at the top.

• Each order shows:

  • Order type icon and name

  • Customer name and/or order number

  • Pickup time (absolute or relative)

  • Tags (e.g., Manual Order, POS Error, Arrived, External Channel, DSP)

Right Segment: Order Details

• Displays detailed information for the selected order:

  • Order ID

  • Customer and courier info

  • Order creation, pickup, and delivery times

  • Status tag

  • Customer comments

  • Product summary with quantities, prices, and comments

  • Calculation breakdown (Subtotal, VAT, Total, Tip, Discounts, Fees, Refunds)

  • CTA to mark order as completed

  • Action menu for additional functions

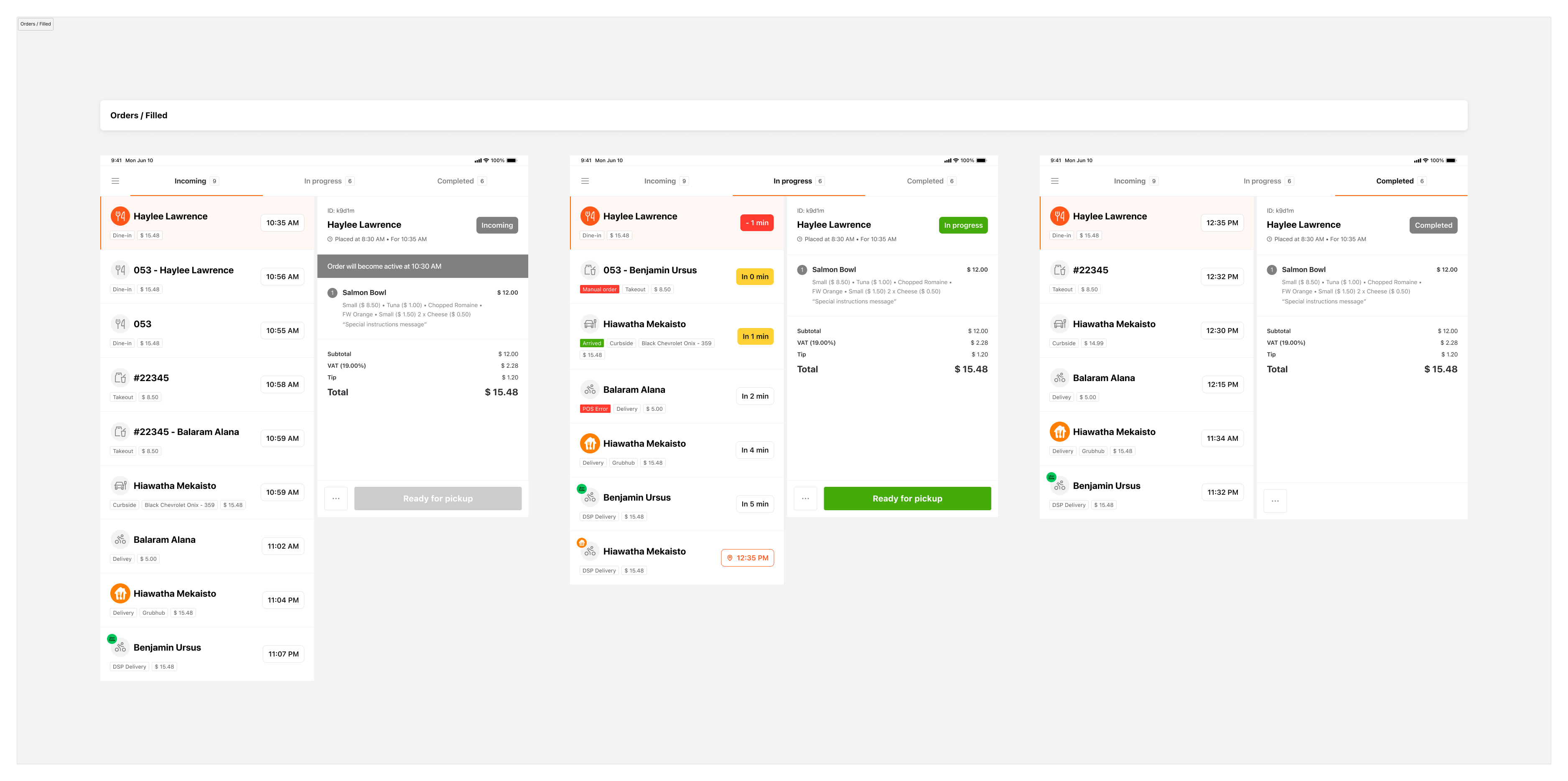

Order Statuses Explained

Incoming Orders

• Received but not yet sent to the kitchen.

• Cannot be marked as completed.

• Transition to in-progress is based on pickup time – preparation time.

In-Progress Orders

• Sent to the kitchen and being prepared.

• Can be marked as completed.

• Pickup time is shown in relative format:

  • White: >1 min remaining

  • Yellow: ≤1 min remaining

  • Red: Overdue

Completed Orders

• Marked as completed.

• Automatically deleted after midnight daily.

• Sorted with most recent at the top.

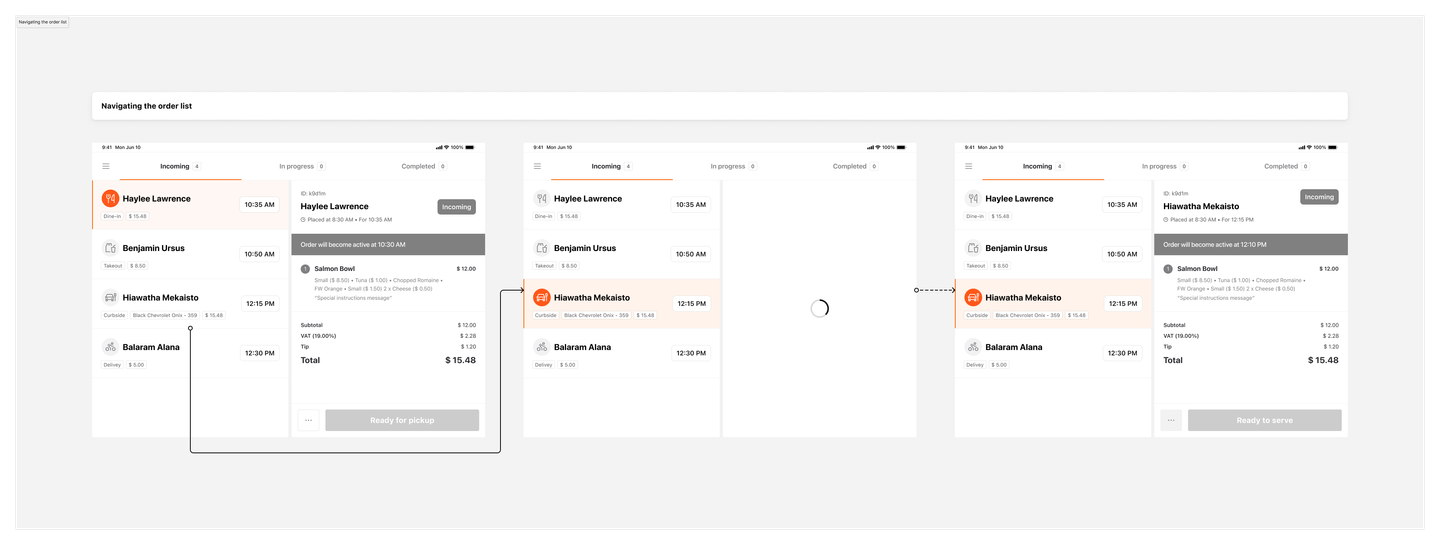

Navigating and Interacting with Orders

Selecting Orders

• Tap an order in the list to view its details.

• The selected order is visually highlighted.

Scrolling

• Both segments support scrolling for long content.

• Top navigation and bottom bar remain fixed.

• Scroll indicators appear during interaction.

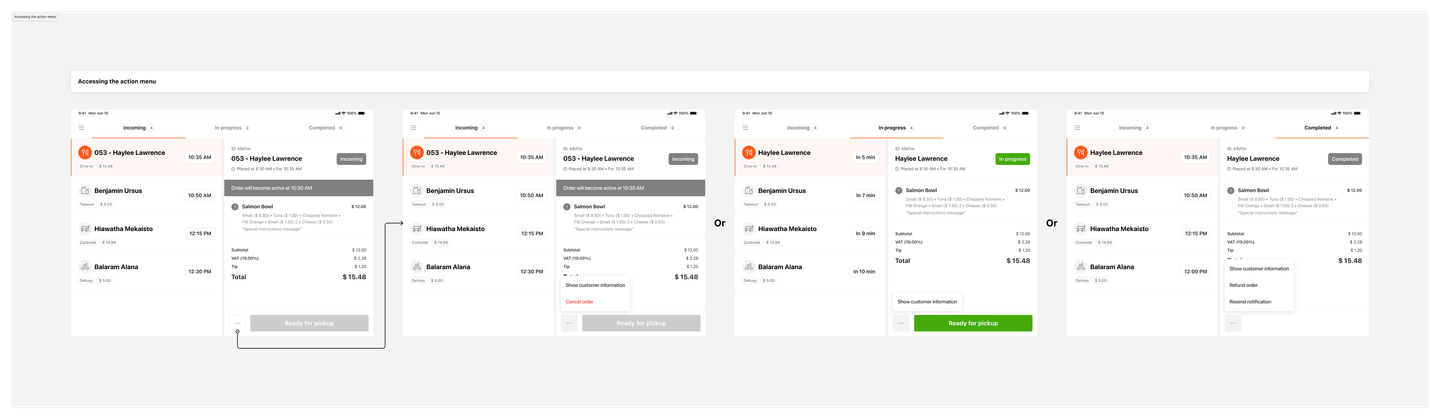

Action Menu

• Accessed via the three dots icon in the bottom bar.

• Menu options vary by order status:

Incoming Orders:

• Show customer info

• Show courier info (delivery only)

• Cancel order (not for Skip the Dishes Ex)

In-Progress Orders:

• Show customer info

• Show courier info (delivery only)

Completed Orders:

• Show customer info

• Show courier info (delivery only)

• Resend notification (Dine-in & Takeout only)

• Refund order
